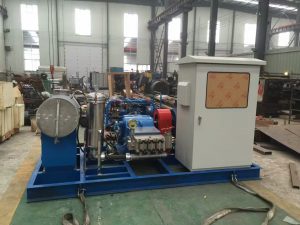

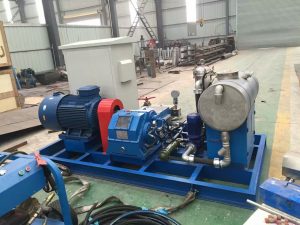

YSHX-65150 Series
Description of high pressure water jetting unit:
YSHX-65150 high-pressure pump is an ultra-high-pressure plunger pump produced by the introduction of German technology. It is suitable for ultra-high-pressure water jet cleaning, ship cleaning and rust removal, as well as condensers, heat exchangers, and heat exchangers in chemical plants, sugar factories, and power plants. Descaling and cleaning of all kinds of evaporator and boiler. It can pump clean water, emulsion, and other liquids with chemical properties. This series of high pressure water jetting unit are all made of high-strength stainless steel, with good wear resistance, tensile strength, compression resistance, corrosion resistance and long service life. It is a good choice if you need 1000bar high pressure water jetting unit.
Features:
The automatic water cooling lubrication system lubricates and cools various parts in the pressurized cylinder with water during the operation of the pump, such as water seals, plungers, etc., to ensure a longer service life of the parts. After the equipment exceeds 1.125 times the rated pressure, the safety valve automatically discharges to reduce the pressure to protect safety. This high pressure water jetting unit is equipped with a pressure regulating valve to adjust the working pressure. The power end transmission part is equipped with an oil forced lubrication mechanism and the oil pressure in the oil forced lubrication mechanism system can be adjusted. It can lubricate the bearings, crankshafts, bushes, connecting rods, crossheads, etc., so as to reduce the wear of each part assembly and ensure the long-term stable operation of the equipment.
- 1000Bar, 50L/min, 90KW Electric motor drive
- 1000Bar, 50L/min, 132KW Diesel engine drive
1000Bar, 37L/min, 75KW electric motor drive.
Custom made:
1. Frequency conversion motor, explosion-proof motor.
2. Pneumatic pressure regulation
Advantasges of this high pressure water jetting unit:
The plunger is made of high-strength stainless steel as the matrix, plus a high-strength wear-resistant coating, with high smoothness, wear resistance and corrosion resistance. The water seal adopts imported products from Germany, which has strong sealing effect, wear resistance and can withstand 400MPa working pressure. The pressure end adopts an integral pump head design, and the replacement of the valve plate, valve seat, water seal, etc. does not need to move the pump head and only takes 15 minutes, and it can be done independently by one person. The pressurizing end is designed with an automatic air exhaust system device. During the operation of the pump, the excess air generated in the pump head due to various reasons can be discharged from the pump body to avoid damage to the equipment.
The bearings of the power end transmission part are imported from Japan and have a long service life. The transmission part of the power end adopts built-in high-precision gear transmission, which is more energy-saving and has a more compact structure. The high-pressure pump sprints at 332rpm, the speed is low, and the thrust is greater.
Support Customize: Pressure, Water Flow Rate. Wheels, Cabinet, Engine brand.
