Sewer & Drain Cleaning Machine

Working principle of drain cleaning machine:
Connect the pipe dredging nozzle to the high-pressure pump through a high-pressure hose, and place the nozzle directly at the pipe port that needs to be dredged. When the high-pressure pump is working, the reaction force generated by the high-pressure water sprayed from the back of the nozzle is used to push nozzle forward quickly, and use the high-pressure water jets generated by the nozzle in front and back to quickly clean the pipes. When the hose reel pulls the nozzle back, the high-pressure water flow discharges the dirt that has been washed away in the pipe outside the sewer pipe.

Drive form:

The drain cleaning machine equipment uses gasoline engine, diesel engine or electric motor as power to drive high-pressure pump to generate high-pressure water jet.

Application fields:
used to dredge, remove, blockage and dirt in pipelines of municipalities, communities, and industrial parks.

Hot Sale Models of Sewer Jetter Cleaning Machine

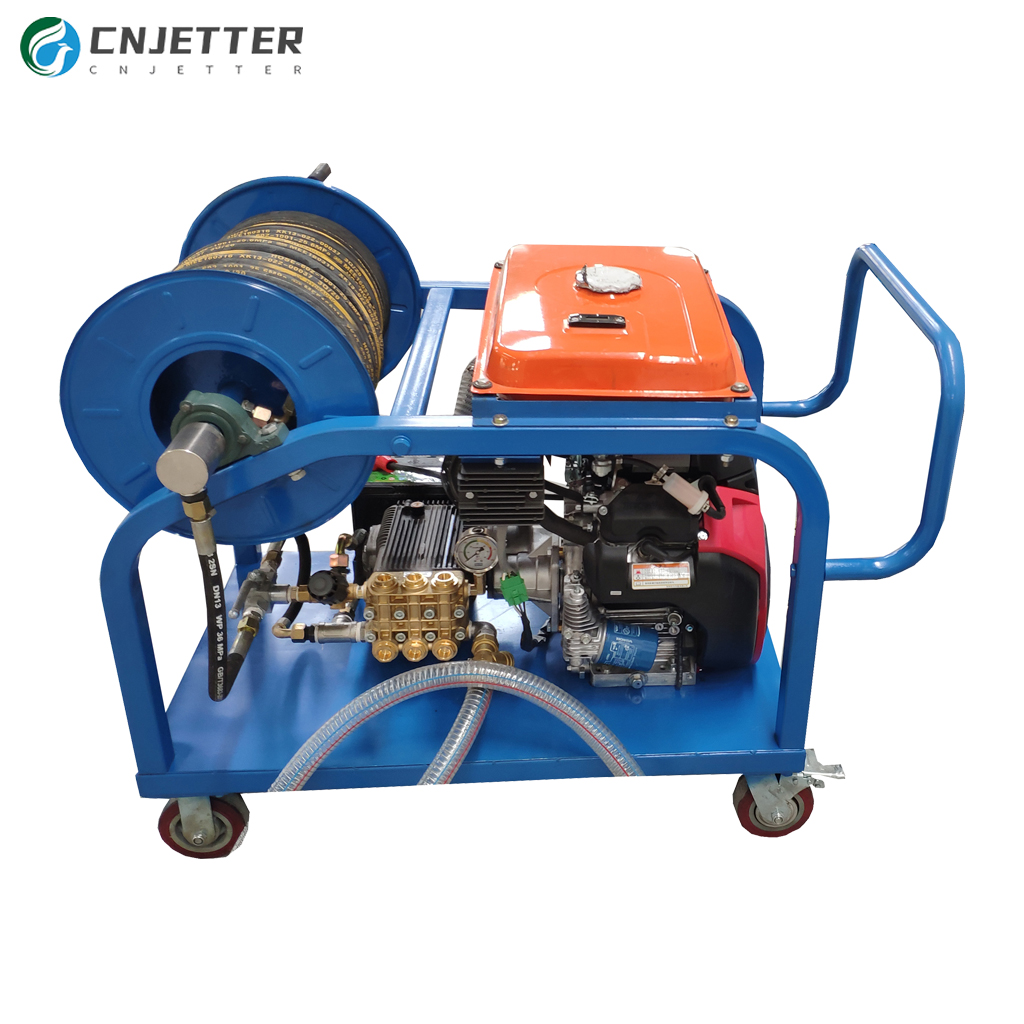

Model: YSHX-1535Q

Pressure: 200bar

Flow rate: 41L/min

Power: 21HP Honda Gasoline Engine

Key Start

Size: 1200*750*900mm

Weight: 250Kg

For Sewer Diameter < 300mm

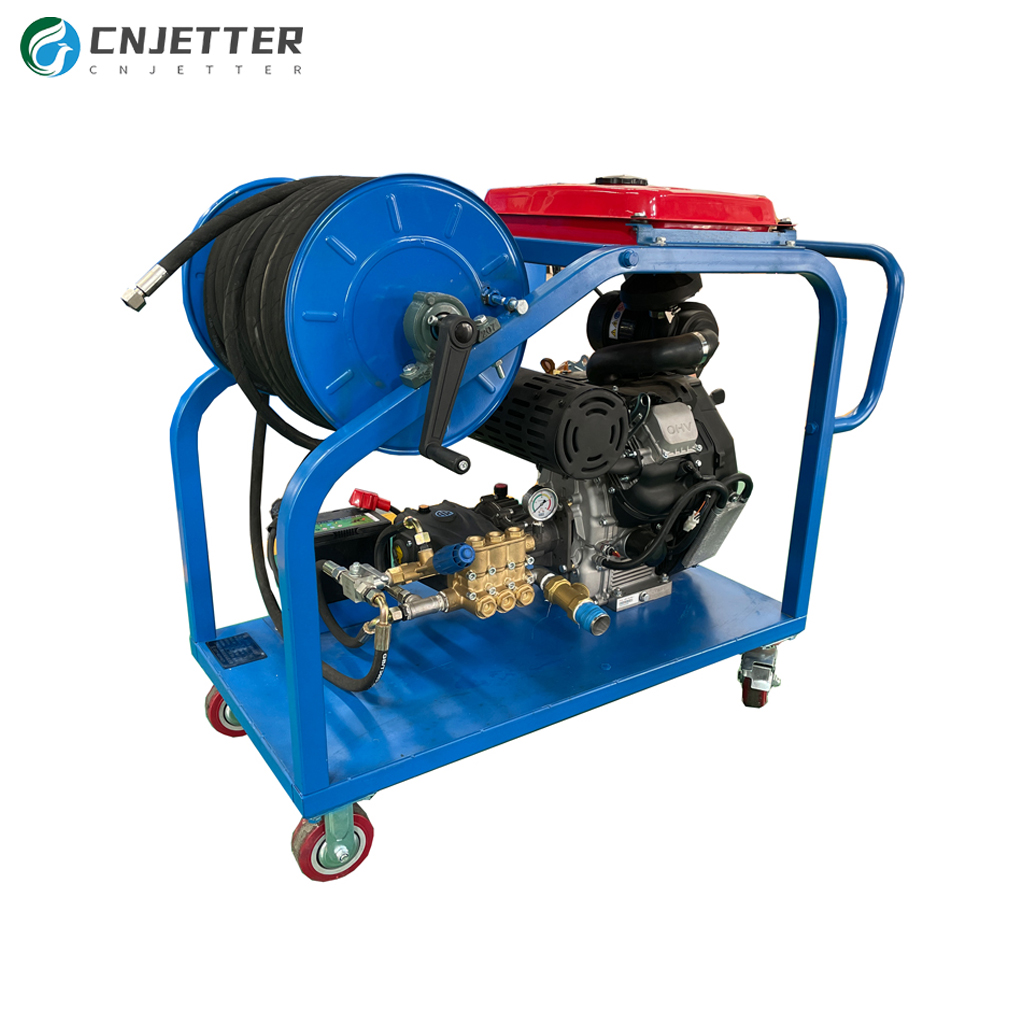

Model: YSHX-1535Q/2

Pressure: 150bar

Flow rate: 70L/min

Power: 35HP Gasoline Engine

Key Start

Size: 1300*1000*1000mm

Weight: 300Kg

For Sewer Diameter < 400mm

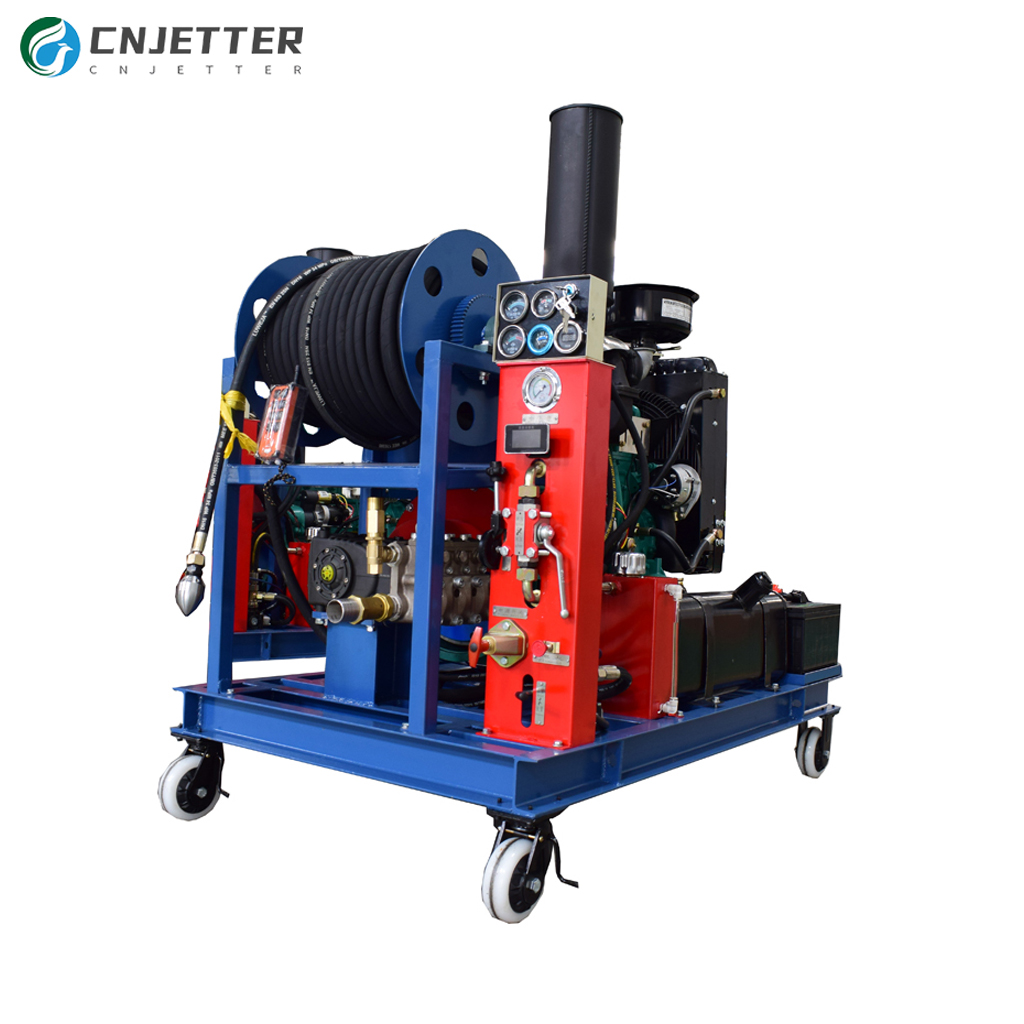

Model: YSHX-1535/3

Pressure: 150bar

Flow rate: 120L/min

Power: 45KW Diesel Engine

Key Start

Size: 1600*1000*1300mm

Weight: 700Kg

For Sewer Diameter < 800mm

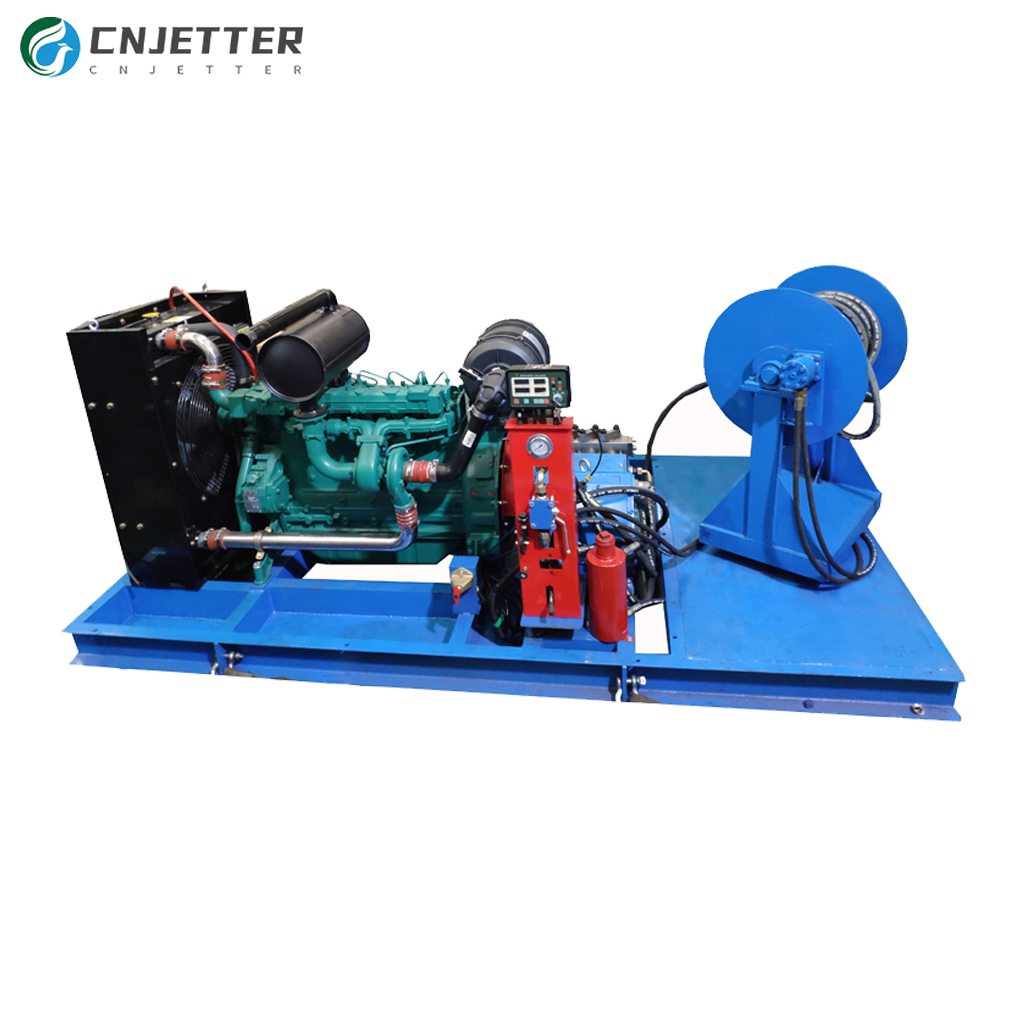

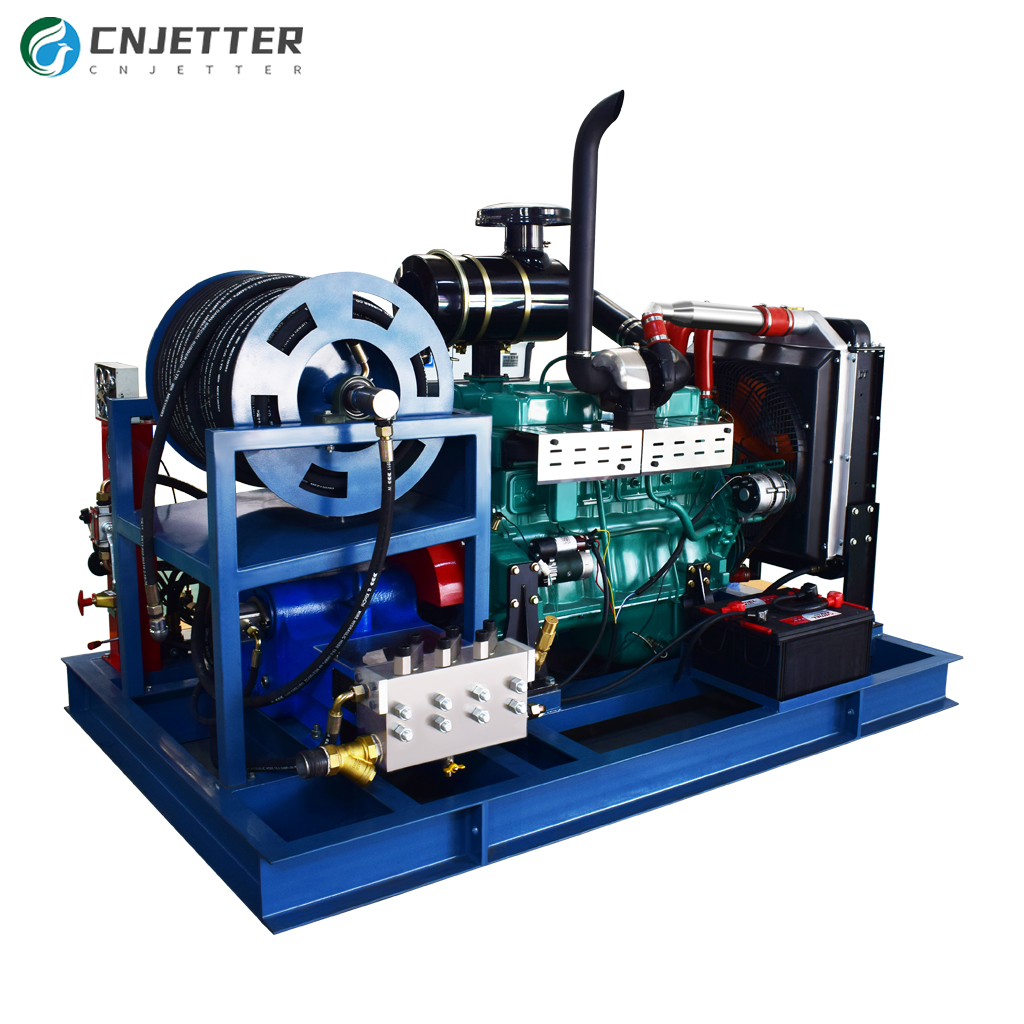

Model: YSHX-3050GC

Pressure: 280bar

Flow rate: 170L/min

Power: 132KW Diesel Engine

Key Start

Size: 2500*1500*1500mm

Weight: 1500Kg

For Sewer Diameter < 1200mm

Model: YSHX-2845

Pressure: 300bar

Flow rate: 260L/min

Power: 190KW DieselĀ  Engine

Key Start

Size: 3000*1800*1900mm

Weight: 2900Kg

For Sewer Diameter< 1500mm

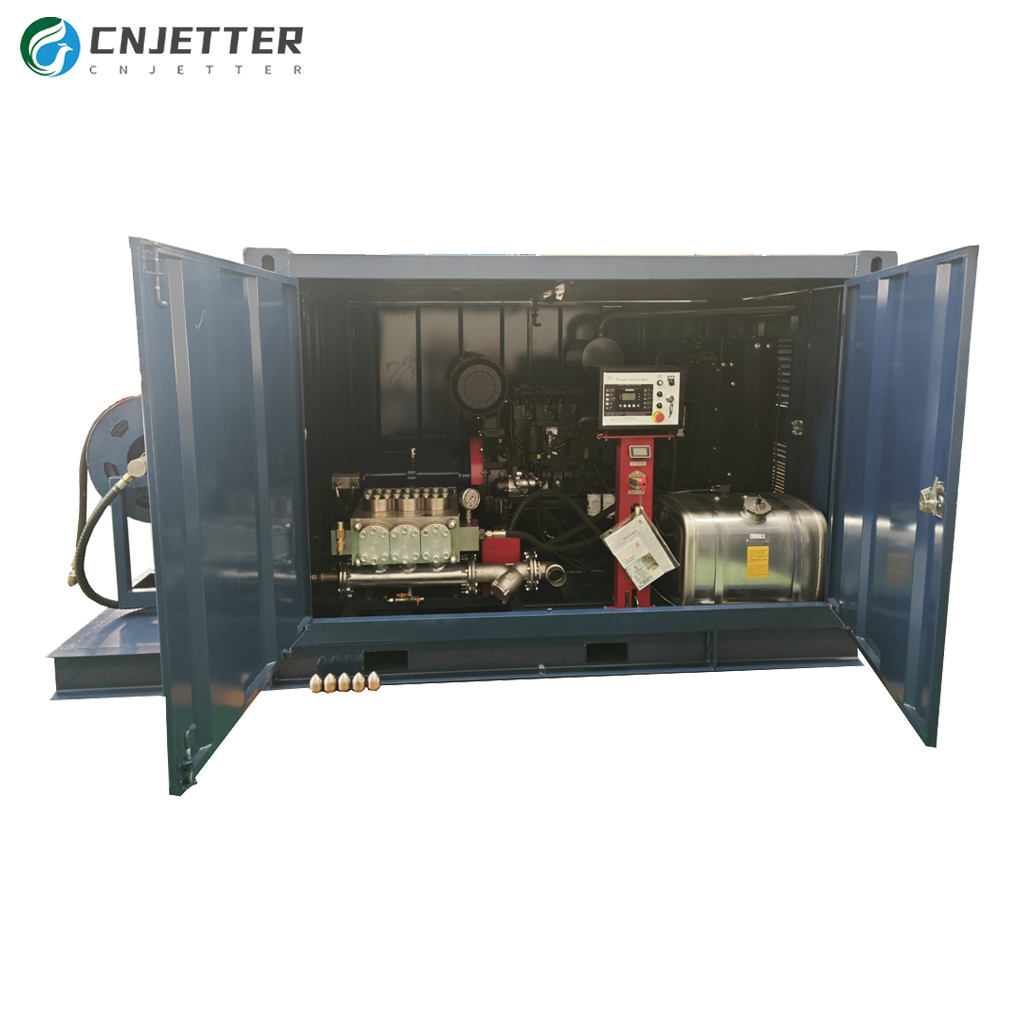

Model: YSHX-2845/2

Pressure: 240bar

Flow rate: 480L/min

Power: 264KW Diesel Engine

Key Start

Size: 3600*1800*1900mm

Weight: 3000Kg

For Sewer Diameter < 2000mm

whatsapp/mobile phone/telphone please
Please tell us your requirement on Cleaning machine, such as your usage, pressure, water flow rate, power type.
